- Introducing the HM122 Bushlander™, the ultimate trailer portable sawmill for the outdoors, milling your hardwood forest in Australia and New Zealand. With its sturdy off-road trailer, you can take the HM122 directly to the log piles on your property or forest. The trailer is equipped with levelling legs that can be quickly deployed for easy setup. You can rely on the rugged 6-ply off-road tires to power through the toughest terrain.
The HM122 is capable of cutting 22” (55cm) diameter logs and boards up to 20” (51cm) wide. It is powered by a dependable 9.5hp Kohler engine and boasts a range of new features such as the RapidChange™ blade system, auto lube, an operation hour meter, and wider cut capability.
The HM122 is a portable sawmill unleashed, designed to help you conquer your hardwood forest in rough terrain with ease.
TECHNICAL SPECIFICATIONS
Engine | 7.0hp or 9.5hp Manual Start Kohler |
Blade Engagement System | Centrifugal Clutch (Gas & Go) |
Log Diameter | 22″ [55 cm] |
Max Board Width | 20″ [51 cm] |
Max Live Edge Width | 20″ [51 cm] |
Max Board Thickness | 6″ [15 cm] |
Cast Iron Bandwheel Diameter | 16″ [40 cm] |
Standard Cutting Length | Standard: 10′ 4″ [3.1 m] / XL: 16′ 9″ [5.1m] |
Track Width | 26″ [66.1 cm] |
Track Extension Length | 6′ 5″ [1.95 m] |
Levelling Feet | 12 |
Track Bunks | 2-3/8 to 4-3/4″ [60 x 120 mm] |
Log Clamps | 1x Screw Style (2x w/ XL Trailer) |
4 Post Head Design | Yes |
Adjustable Blade Guide | Not Included |
Blade Size | 125 x 1.25″ [3175 x 32 mm] |
RapidChange Blade System | Yes |
Auto Lubrication | Yes |
Lubricant Tank Size | 10L [2.6gal] Aluminum |
Hour Meter | Yes |
Finish | Powder Coat Paint / Galvanized Steel |
Sawmill Warranty | 2-Year |
Engine Warranty | 3-Year |
Product Weight | 1020 lbs (463 kg) |
Shipping Weight | 1020 lbs (463 kg) |
Trailer Axle | Two removable solid axles with lynch pins |
Trailer Wheels | 4 Bolts @ 3-15/16 in [100 mm] & 22X11-10 ATV Tires |
Trailer Lights | No |
Trailer Levelling Jacks | 1 |
Levelling Legs | Bushlander: 8 levelling legs; Bushlander XL: 12 levelling legs |
Trailer Ball Coupler | 2″ (50mm) |
Sawmill Warranty | 2-Year |
Engine Warranty | 3-Year |
Tire Pressure | Refer to Tire |

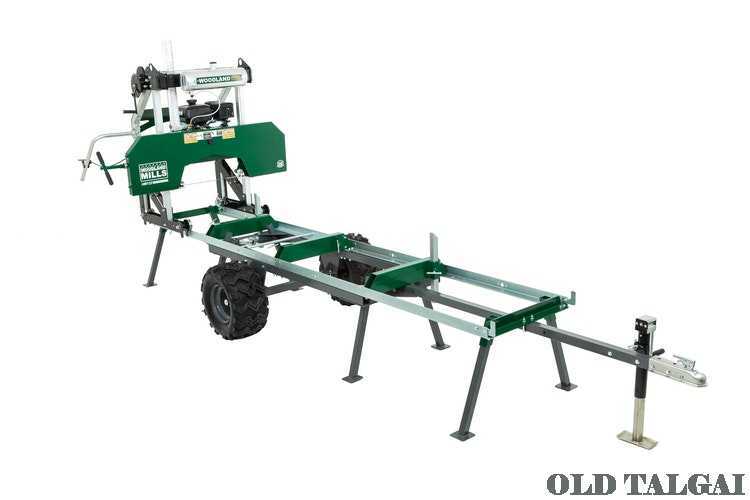

HM122 BUSHLANDER™ SAWMILL
The Woodland Mills HM122 Bushlander™ is an affordable and portable sawmill solution for hobby sawyers who want to mill their lumber on-site. With a maximum cutting capacity of 22” (55cm) in diameter and 20” (51cm) in width, you can easily cut standard length boards of 10’ 4” (3.1m) or optionally the XL version can mill boards of 16’ 9” (5.1m). The HM122 features a robust 4-post design made of steel components that are powder-coated or galvanized for added durability. Its power comes with a reliable 9.5hp 4-cycle Kohler petrol engine. Innovative features of the HM122 include the auto-lubricant blade system, which keeps the blade lubricated during operation, a vibration-activated hour meter and the RapidChange™ blade system which enables you to quickly change blades without tools. The Bushlander Trailer is included with the HM122 sawmill, making it easy to transport to your log pile, even on rough terrain. The trailer has leveling legs that allow for quick deployment once you reach your milling location.

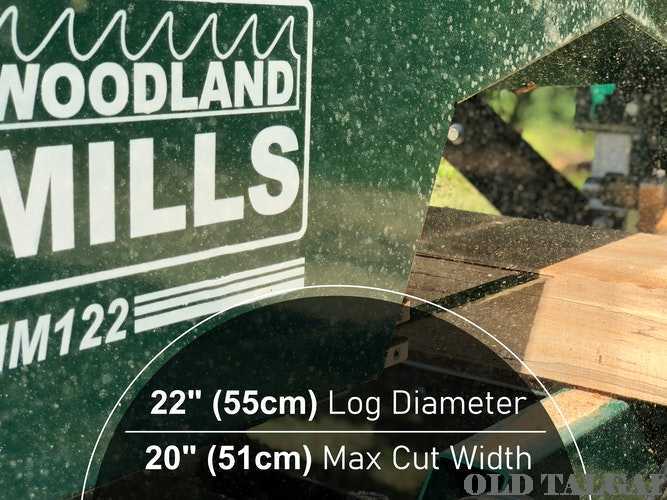

PRECISION CUTTING
The HM122 Bushlander portable sawmill is designed to cut logs with a diameter of up to 22 inches (55cm) and a length of up to 10 feet 4 inches (3.1m). It is also capable of producing live edge boards that are up to 20 inches (51cm) wide and veneers as thin as 1/16 inch (1.6mm). The portable sawmill can cut the logs within 1 inch (25mm) of the deck, ensuring maximum usable board foot output.
EFFICIENT POWER
Powered by a reliable 7.0HP or 9.5HP 4-cycle Kohler gas/petrol engine. The HM122 features a slant cylinder design, with a cast iron cylinder bore and an overhead valve for easy access. The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. Attached to the engine is an industrial centrifugal clutch system for easy gas-and-go operation. Backed by a 3-year Kohler commercial warranty.

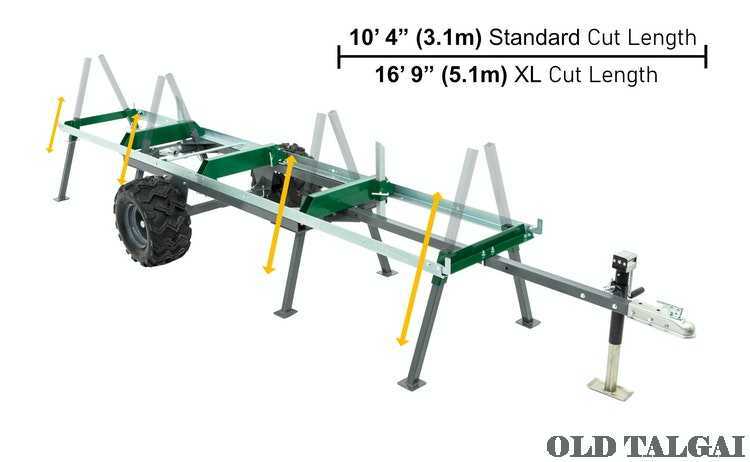

RIGID TRACK SYSTEM
The HM122 portable sawmill is equipped with a sturdy track system that comprises of a machined “L” channel measuring 2 3/8″ x 2.5″ (6cm x 6cm) and heavy-duty rectangular log bunks measuring 2 3/8″ x 4 3/4″ (6cm x 12cm). These log bunks provide additional rigidity to the track system and disperse the weight of the log over a large bearing surface to prevent marking the log with indentations. The track system comes with a standard Bushlander track, which features a user-friendly screw-style log clamp that securely holds the log in place during milling. It consists of two 6′ 5″ (1.95m) sections, allowing for logs up to 10′ 4″ (3.1m) in length. Optionally the Bushlander XL, on the other hand, boasts a longer cut length of 16′ 9″ (5.1m).

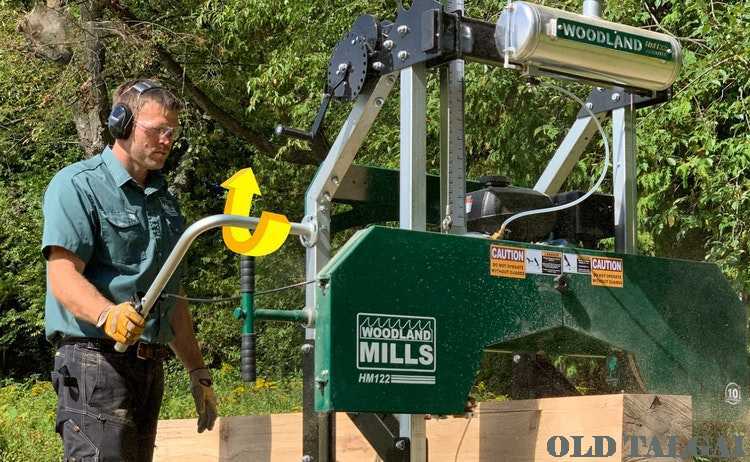

GAS & GO OPERATION
Simultaneously, the engine RPM, saw blade and auto lube system are engaged by the throttle handle, which makes the lumber cutting process quick and efficient while reducing the number of steps needed by the operator. Depending on the track height, the throttle handle position can also be adjusted for comfort.

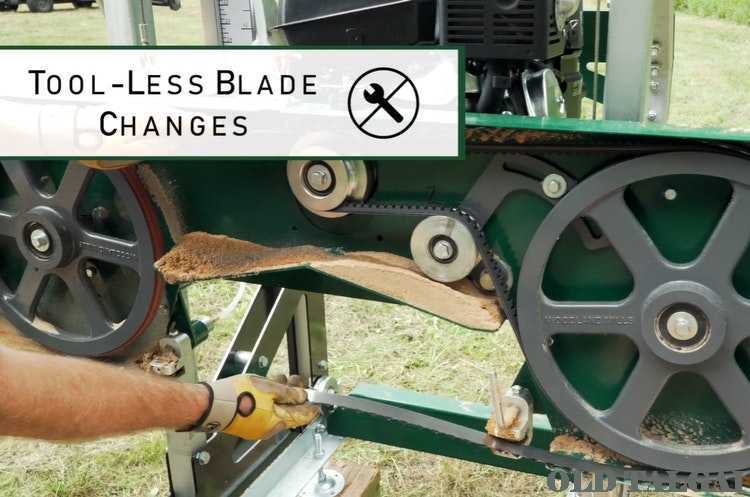

RAPIDCHANGE™ BLADE SYSTEM
The Woodland Mills HM122 portable sawmill offers an exclusive RapidChange™ blade system that allows for quick blade changes without the need for tools. This system also reduces the need for blade tracking adjustments between changes. A stack of Belleville washers serves as a shock absorber for the blade, providing consistent blade tension in all temperatures and reducing stress on the blades.

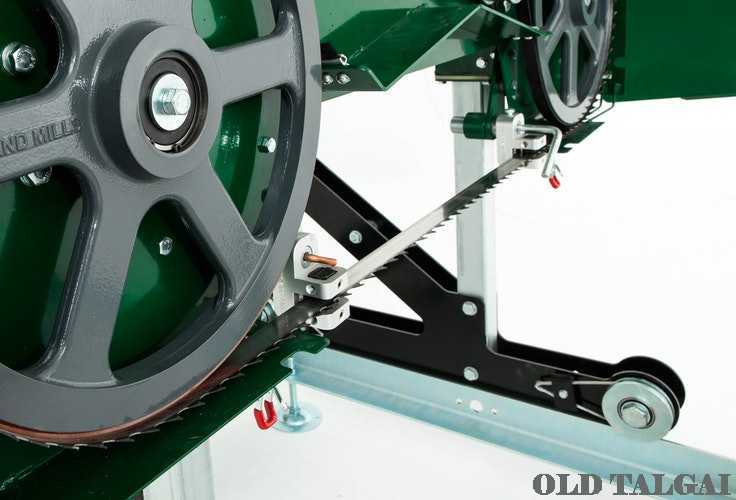

THIN KERF BLADES
The HM122 portable sawmill uses hardened-tipped blades that measure 1.25″ x 125″ x 0.042″ (32mm x 3.175m x 1.0mm) and are sold by Old Talgai. The blade kerf is minimized to just .080″ (2mm), which allows for maximum lumber yield per log.
BUSHLANDER™ TRAILER
The Bushlander™ off-road trailer package offers enhancedmobility for your milling operation. It is designed to navigate uncharted hardwood
forest and rough terrain found in Australia, allowing you to conveniently bring
your HM122 portable sawmill directly to the logs. You can connect it to your
towing vehicle using the included 2” (50mm) ball hitch. The raised track
provides a more comfortable and ergonomic working height, and the trailer can
easily be rolled into storage when not in use or for maintenance. The Bushlander
trailer features 8 leveling legs (12 – XL Trailer) that can be deployed and
adjusted for uneven terrain, and rugged 6 ply off-road tires that can be
removed to clear the operator’s walking path when milling. Additionally, an
optional log loading ramp kit is available for the Bushlander, which allows you
to load logs without the need for additional equipment.
PATENT PENDING FOLDING TRAILER EXTENSION
The Bushlander XL comes equipped with a patent-pendingfolding trailer extension that can be easily folded and secured to the HM122 saw
head during transport. When folded up, the track acts as a structural brace
that helps secure the sawmill head during off-road travel. Its compact form
makes it easier to navigate narrow spaces and paths and creates a smaller
footprint when stored in your shed, shop, or garage. Additionally, the
Bushlander XL includes an additional 6’ 5” (1.95m) track length, leveling legs,
and a screw-style log clamp with a transport strap.

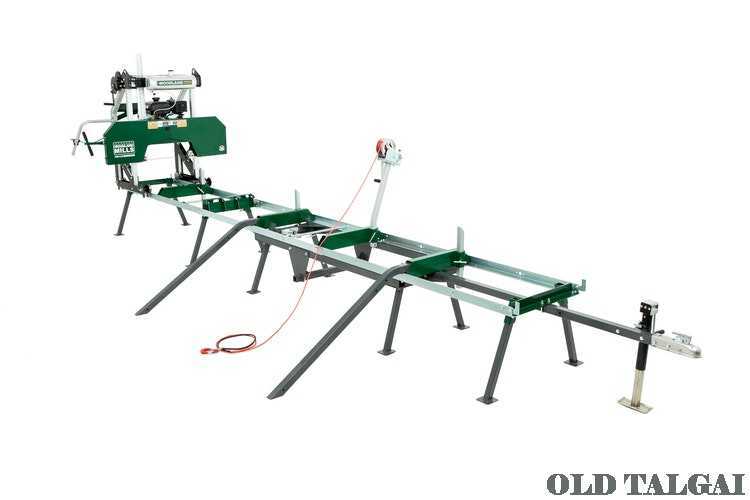

OPTIONAL LOG LOADING RAMP & WINCH KIT
The heavy-duty log loading ramp & winch kit is an optional accessory for the Bushlander trailer that can be mounted onto the trailer, enabling you to easily roll logs weighing up to 2,500 lbs (1,134 kgs) onto the sawmill bed. The kit comes with two steel ramps, a manual hand crank winch with 30′ (9m) synthetic rope, winch post, and locking pins to secure ramps to the trailer when not in use or during transit. This kit is sold separately and is compatible with both the Bushlander Standard and XL trailer.
WOODLAND MILLS QUALITY & CUSTOMER SERVICE
At Old Talgai PTY LTD, we put our customers first. If you have a question about a product you purchased, you can contact us at 61 (0)439 643 384.The HM122 BUSHLANDER is backed by a 2-year manufacturer’s warranty (excludes wearing parts, belts, blades & bearings). The Kohler engine is covered by a 3-year commercial Kohler manufacturer warranty and honored through any Kohler small engine dealers.
SHIPPING
Shipping Weight: 1254 lbs (569 kg)
