TECHNICAL SPECIFICATIONS
Engine | 14hp Manual Start Kohler |
Blade Engagement System | Centrifugal Clutch (Gas & Go) |
Log Diameter | 26″ [66 cm] |
Max Board Width | 21″ [53 cm] |
Max Live Edge Width | 24″ [61 cm] |
Max Board Thickness | 7″ [18 cm] |
Cast Iron Bandwheel Diameter | 19″ [48 cm] |
Standard Cutting Length | 10′ 5″ [3.1 m] |
Track Width | 30.5″ [77.5 cm] |
Track Extension Length | 6′ 5″ [1.95 m] |
Levelling Feet | 12 |
Galvanized Track Rails | Yes |
Track Bunks | 3 x 6″ [75 x 150 mm] |
Log Clamps | 1x Quick Lock |
4 Post Head Design | Yes |
Adjustable Blade Guide | Standard with 14hp Engine; Optional with 9.5hp Engine |
Blade Size | 144 x 1.25″ [3658 x 32 mm] |
RapidChange Blade System | Yes |
Auto Lubrication | Yes |
Lubricant Tank Size | 10L [2.6gal] Aluminum |
Hour Meter | Yes |
Finish | Powder Coat Paint / Galvanized Steel |
Sawmill Warranty | 2-Year |
Engine Warranty | 3-Year |
Shipping Weight | 931 lbs (422 kg) |
Trailer Specifications | See Below |
Trailer Axle | Independent Torsion Axle Design |
Trailer Wheels | 5 Bolts @ 4.5 in [114 mm] & 5.30-12 DOT Approved Tires |
Tire Pressure | Refer to Tire |
Wheel Nut Torque | 80 ft•lb [110 N•m] |
Trailer Ball Coupler | 2 in [50 mm] |
Trailer Lights | LED Light Kit (stop, turn, tail, side markers, and license plate light) |
Finish | Powder Coat Paint / Galvanized Steel |
Fenders | Removable |
Safety | Locking pins and safety straps to secure sawhead while travelling |
Shipping Weight | Woodlander XL: [721 kg] Woodlander
MAX XL: [859 kg] |
HM126 WOODLANDER™ SAWMILL
The HM126 Woodlander™ portable sawmill, a favourite among sawyers of all experience levels, has been upgraded to provide an even better cutting experience. With the ability to produce lumber for cabins, decks, siding and more, this portable sawmill is ideal for hobbyists, entrepreneurs, and experienced woodworkers. The HM126 Woodlander can handle 26″ (66cm) diameter logs, producing boards up to 24” (61cm) wide and up to 16′ 11″ (5.1m) long with the Woodlander XL trailer or 10’ 5” (3.1m) long with the standard Woodlander trailer. Its 4 post saw head design and tubular back beam ensure ultimate rigidity for precise cuts. The saw head moves up and down along galvanized steel posts via a simple hand crank system. It is powered by either a dependable 9.5hp or 14hp 4-cycle Kohler gas engine. The sawmill boasts many innovative features, including the automatic blade lubrication system that activates when the throttle is engaged, streamlining the cutting process and the RapidChange™ blade system for tool-less blade changes. The HM126 portable sawmill is engineered to deliver smooth and accurate cuts, making it the best value in its class. It comes packaged with the Woodlander trailer, which makes transportation across diverse terrain a breeze.
PRECISION CUTTING
With the HM126 Woodlander, you can easily mill logs up to 26″ (66cm) in diameter and create live edge boards up to 24” (61cm) in width. The standard track & trailer configuration allows you to cut logs up to 10’ 5” (3.1m) long, but you can upgrade to the Woodlander XL to cut logs up to 16’11” (5.1m) in length. This sawmill can even skim veneers as thin as 1/16″ (2mm). By cutting within 1″ (25mm) of the deck, the HM126 ensures that you maximize your usable board foot output.
EFFICIENT POWER
The HM126 Woodlander is powered by a dependable 9.5hp or 14hp recoil start 4-cycle Kohler petrol engine. The engine boasts a slant cylinder design with a cast iron cylinder bore and overhead valve, which facilitates easy access. Its Quad-Clean 4-stage air filtration system ensures that only clean air enters the engine, maximizing the engine’s power and lifespan. An industrial centrifugal clutch system attached to the engine enables easy gas-and-go operation. The Kohler warranty backs the engine for 3 years.
RIGID TRACK SYSTEM
The HM126 sawmill head moves along a solid 2.5″ x 4″ (63mm x 101mm) “L” channel, which is cross-supported with a robust 3″ x 6″ (76mm x 152mm) rectangular tube. These cross supports ensure that the weight of the log is evenly distributed over a broad bearing surface, preventing indentation marks on the log and adding extra stiffness to the track system. Additionally, the track system features a straightforward adjustable quick-lock log clamp, which holds the log securely while milling. The track system is coupled with the trailer frame, which is built with 1/4” (6mm) thick laser-cut bent side plates and tubular cross supports, providing an extremely rigid chassis. The track supports log lengths of up to 10’ 5” (3.1m), but you can upgrade to the Woodlander XL to cut logs up to 16’11” (5.1m) in length. Note: trailer is not designed to transport logs.
AUTO LOCKING SAWHEAD
The saw head on the HM126 portable sawmill provides highly precise and consistent control. Just push the handle in and rotate it through 16 locking positions to move the saw head up or down. Equipped with an acme lead screw, this system delivers extremely accurate adjustments with an accuracy of 1/64” (0.4mm). Additionally, traditional magnetic log scale rulers are included to help align your cuts with ease.
AUTO LOCKING ADJUSTABLE BLADE GUIDE
The Auto Locking Adjustable Blade Guide on the HM126 sawmill is designed to keep the blade guides close to the wood being cut, minimizing blade wander for more accurate cuts. This premium system utilizes stainless steel v-rollers and a matched machined aluminium arm, providing superior performance compared to traditional adjustable blade guides. The 14HP HM126 model comes standard with this feature, while it can be purchased as an optional accessory for the 9.5HP model.
GAS & GO OPERATION
The throttle handle on the HM126 sawmill engages the engine RPM, saw blade and auto lube system simultaneously, streamlining the process of cutting lumber and reducing the number of steps required by the operator. Additionally, the position of the throttle handle can be adjusted for comfort based on the track height. This system ensures quick and efficient cutting of hardwood in your Australia Forest with minimal operator effort.
RAPIDCHANGE™ BLADE SYSTEM
The Woodland Mills HM126 portable sawmill offers an exclusive feature called the RapidChange™ blade system, which allows for tool-less and quick blade changes. This innovative system also reduces the need for blade tracking adjustments between changes, making the process more efficient. The system utilizes a stack of Belleville washers to act as a shock absorber for the blade, while also providing consistent tension in all temperatures, resulting in less stress on the blades.
THIN KERF BLADES
The HM126 sawmill uses 1.25″ x 144″x 0.042″ (32mm x 3660mm x 1.0mm) hardened tipped blades, which are
available for purchase through Old Talgai. The blade kerf is minimal at just
0.080″ (2mm) to maximize the amount of lumber that can be produced from
each log.

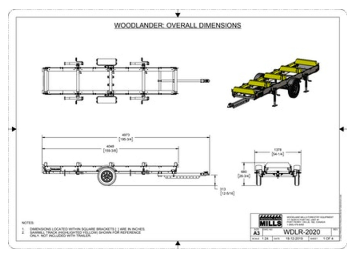

WOODLANDER™ TRAILER
The Woodlander and Woodlander XL trailers boast a chassis made of laser-cut bent plates and tubular cross supports that unite with the sawmill track system to create a box-style structured chassis. This construction ensures a high level of rigidity. The trailer features a galvanized steel frame, torsion axle suspension system and tires. The LED light kit, safety chains, and 2″ (50mm) ball receiver come standard with the trailer, including stop, turn, tail, side markers, and a license plate light. The trailer is equipped with 4 leveling jacks that facilitate quick and stable setup on uneven ground. The Woodlander trailer comes in two different lengths, and an optional log loading ramp kit is available, allowing for easy loading of logs without the need for additional equipment. Additionally, the trailer package includes a sawmill head locking kit, which secures the head to the trailer during transport.
Note: Trailer is sold in Australia and New Zealand as on off road trailer. No VIN number is provided. Registration in your country or state is buyers’ responsibility.
License for Highway Use
This trailered portable sawmill is sold as an off-road package. Road safety components are included to aid in the registration as a home-built trailer in your jurisdiction. Every state and country have different requirements and it is recommended to check with your region requirements. No VIN number provided.

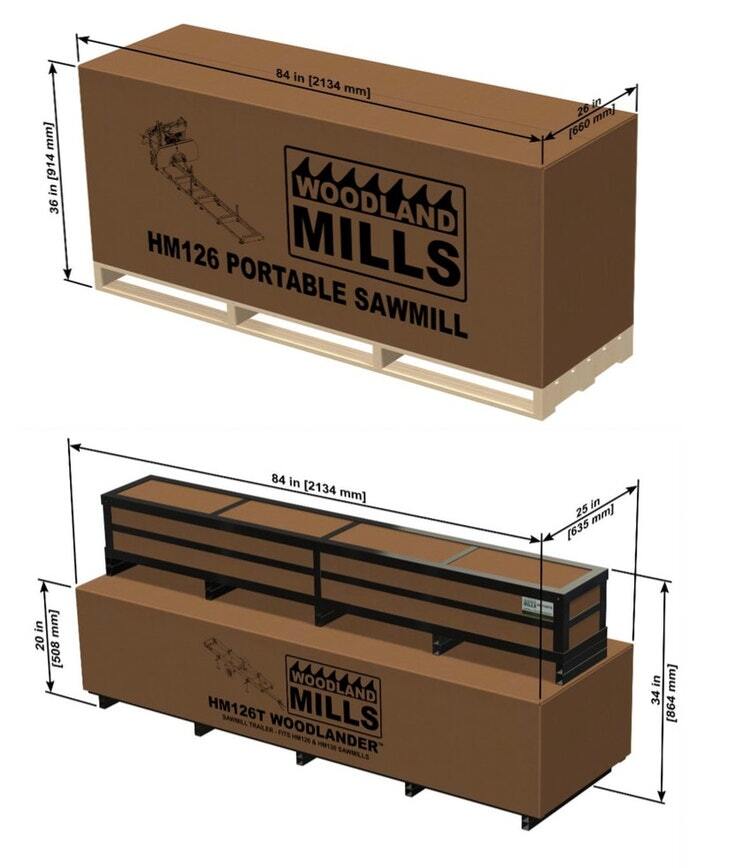

SHIPPING
