Portable Sawmill HM122 – 22″ Black Friday
$4,669.00
Black Friday Bundle: The Portable Sawmill HM122 Bundle!
Black Friday Bonus:
FREE 5 Pack of Blades
FREE Spare Parts KitFREE Cant Hook
Your choice of a FREE Hat:
OR
This Black Friday, take your woodworking to the next level with the Woodland Mills HM122 Portable Sawmill — the perfect choice for entry-level sawyers across Australia and New Zealand. Designed for those who want to mill their own hardwood lumber without breaking the bank, the HM122 combines affordability with top-tier performance.
Enjoy premium features like the RapidChange™ blade system, automatic blade lubrication, operation hour meter, and extra-wide cutting capacity — all built to make your milling smoother, faster, and more precise.
Don’t miss your chance to start milling your own timber this summer — with the best value sawmill deal in Australia and New Zealand!
TECHNICAL SPECIFICATIONS
| Engine | 9.5 HP Manual Start Kohler |
| Blade Engagement System | Centrifugal Clutch (Gas & Go) |
| Log Diameter | 22″ [55 cm] |
| Max Board Width | 20″ [51 cm] |
| Max Live Edge Width | 20″ [51 cm] |
| Max Board Thickness | 6″ [15 cm] |
| Cast Iron Bandwheel Diameter | 16″ [40 cm] |
| Standard Cutting Length | 10′ 4″ [3.1 m] |
| Track Width | 26″ [66.1 cm] |
| Track Extension Length | 6′ 5″ [1.95 m] |
| Levelling Feet | 12 |
| Track Bunks | 2-3/8 to 4-3/4″ [60 x 120 mm] |
| Log Clamps | 1x Screw Style |
| 4 Post Head Design | Yes |
| Adjustable Blade Guide | Not Included |
| Blade Size | 125 x 1.25″ [3175 x 32 mm] |
| RapidChange Blade System | Yes |
| Auto Lubrication | Yes |
| Lubricant Tank Size | 10L [2.6gal] Aluminum |
| Hour Meter | Yes |
| Finish | Powder Coat Paint / Galvanized Steel |
| Sawmill Warranty | 2-Year |
| Engine Warranty | 3-Year |
| Product Weight: | 9.5HP: 615 lb [279 kg] |
| Shipping Weight | 679 lbs (308 kg) |

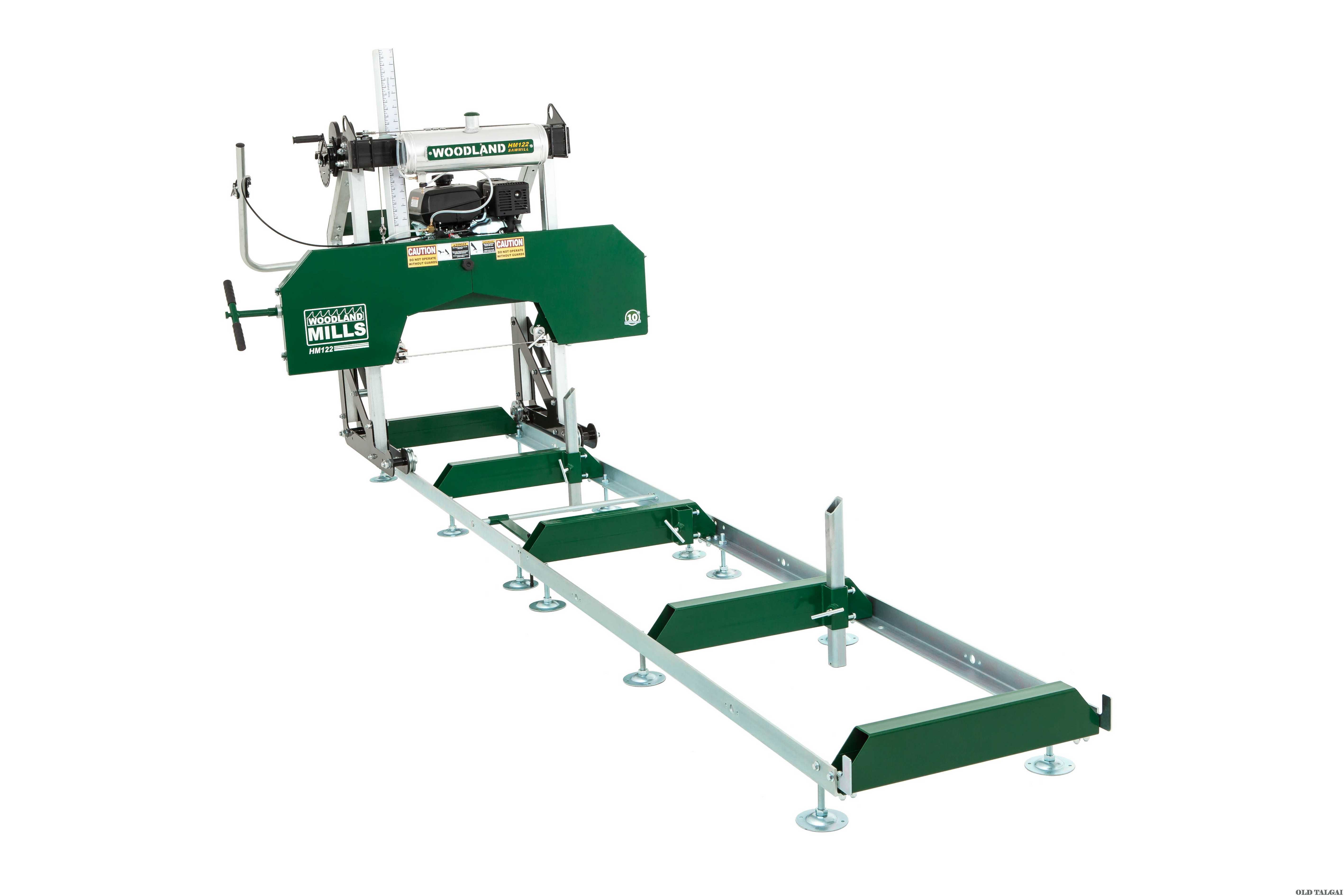

HM122 PORTABLE SAWMILL
The Woodland Mills Portable Sawmill HM122 is the perfect choice for hobby sawyers in Australia. It provides a budget-friendly way to mill hardwood lumber from your local forest. This portable sawmill can handle logs up to 22” (55cm) in diameter. It produces boards up to 20” (51cm) wide and 10’ 4” (3.1m) long. Its 4-post head design, with a tubular back beam, ensures rigidity, resulting in precise and smooth cuts.

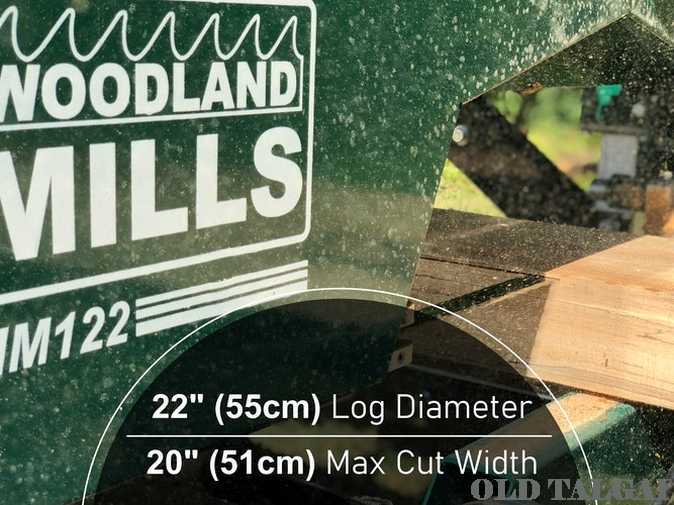

PRECISION CUTTING
With its ability to cut logs up to 22″ (55cm) in diameter and mill live edge boards up to 20″ (51cm) wide, the HM122 portable sawmill is ideal for those in Australia & New Zealand. It maximizes lumber output from the local hardwood forest. This portable sawmill can handle logs up to 10’ 4” (3.1m) in length with the standard track configuration.
EFFICIENT POWER
The Portable Sawmill HM122 is powered by a dependable 7.0HP or 9.5HP 4-cycle Kohler gas/petrol engine. This makes it a reliable tool for hobby sawyers in Australia and New Zealand. This engine features a slant cylinder design, with a cast iron cylinder bore and an overhead valve for easy access.

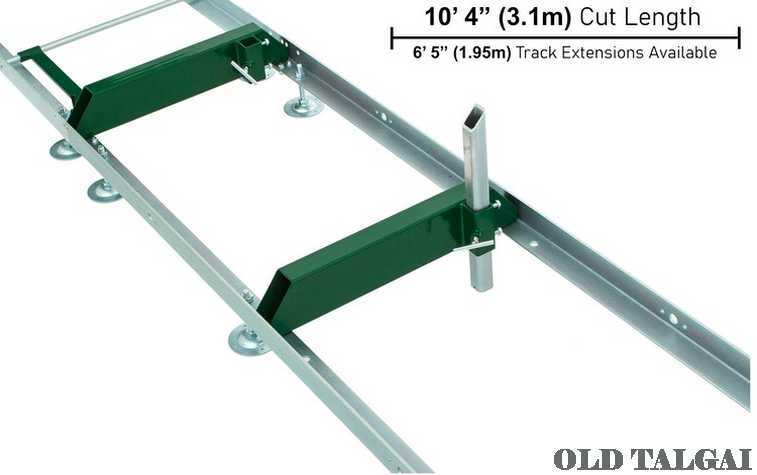

RIGID TRACK SYSTEM
The Portable Sawmill HM122 is designed for maximum stability and accuracy during operation. The sawmill head rolls along a rigid 2 3/8″ x 2.5″ (6cm x 6cm) machined “L” channel. It is cross-supported with heavy-duty 2 3/8″ x 4 3/4″ (6cm x 12cm) rectangle log bunks.

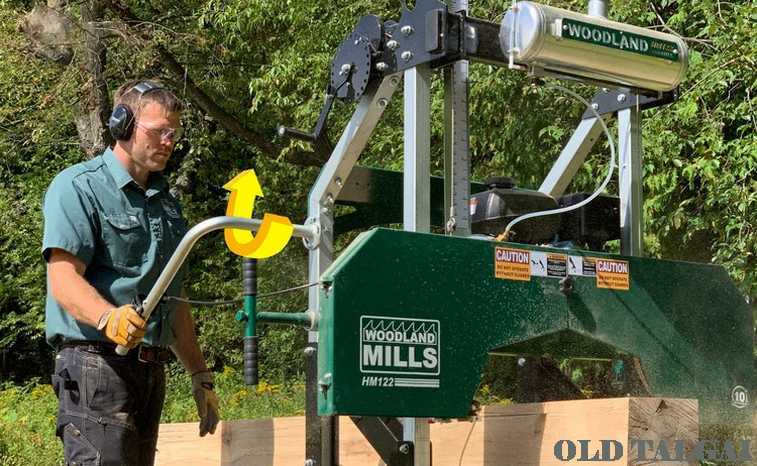

GAS & GO OPERATION
The Portable Sawmill HM122 is designed to make the process of cutting lumber quick and efficient, thanks to its innovative throttle system. The throttle handle engages the engine, saw blade, and auto lube system simultaneously, reducing the number of steps required by the operator. This means that the operator can focus on cutting the lumber rather than adjusting multiple components separately. To ensure maximum comfort during operation, the throttle handle position can also be adjusted based on the track height. This makes it easy for operators to work comfortably regardless of their height or the length of the logs they are cutting.

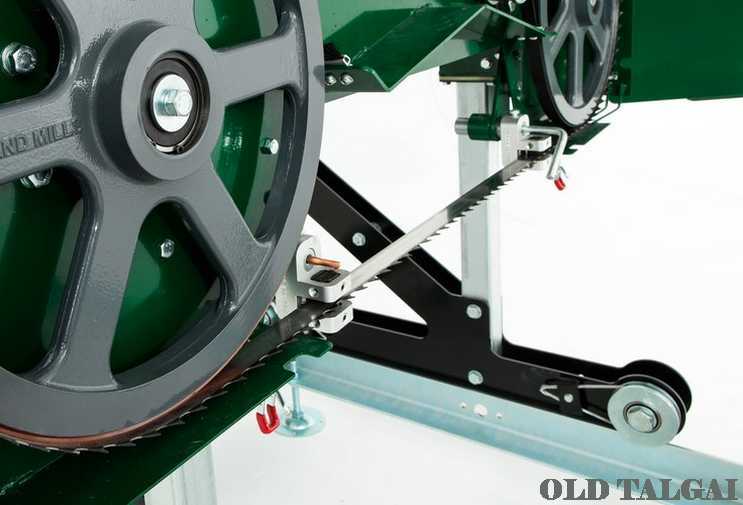

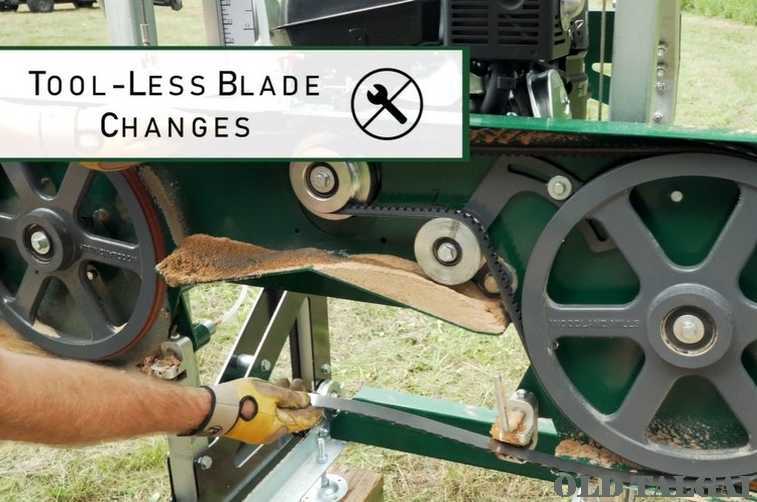

RAPIDCHANGE™ BLADE SYSTEM
Woodland Mills has developed an innovative feature exclusive to their portable sawmill’s called the RapidChange™ blade system. This system is designed to make changing blades quick and easy without the need for any tools, significantly reducing downtime during blade changes. Furthermore, the RapidChange™ blade system reduces the need for blade tracking adjustments between blade changes, ensuring consistent blade tension throughout all temperatures. The system uses a stack of Belleville washers that act as a shock absorber for the blade, reducing stress on the blades and ensuring they last longer. Overall, the RapidChange™ blade system is a game-changer for hobby sawyers looking to mill hardwood lumber from the forest in Australia.
THIN KERF BLADES
The Woodland Mills Portable Sawmill HM122 utilizes top-of-the-line 1.25″ x 125″ x 0.042″ (32mm x 3.175m x 1.0mm) hardened tipped blades, which are available for purchase through Old Talgai. These blades are specially designed to withstand the rigors of milling hardwood in the forest in Australia. The Portable Sawmill HM122 is also designed to minimize blade kerf, which is the width of the cut made by the blade, to just .080″ (2mm). This feature maximizes the amount of lumber produced per log, ensuring that hobby sawyers get the most out of each log they mill. The HM122 portable sawmill is an efficient and reliable tool for producing high-quality lumber from hardwood logs.
At Old Talgai PTY LTD, we put our customers first. If you have a question about a product you purchased, you can contact us at 61 (0)439 643 384.The Portable Sawmill HM122 is backed by a 2-year manufacturer’s warranty (excludes wearing parts, belts, blades & bearings). The Kohler engine is covered by a 3-year commercial Kohler manufacturer warranty and honored through any Kohler small engine dealers. For more information, please visit the Warranty Policy.

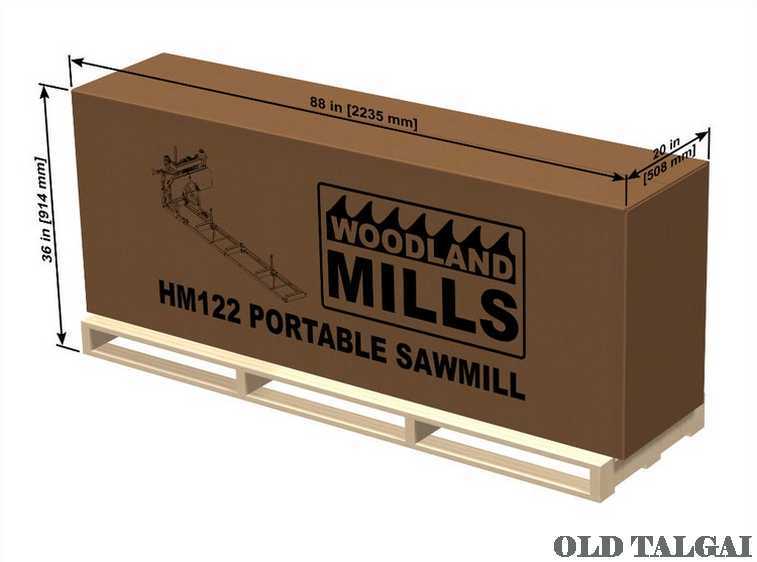

SHIPPING
Shipping Weight: 679 lbs (308 kg)

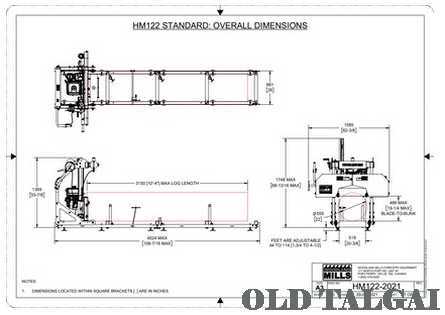

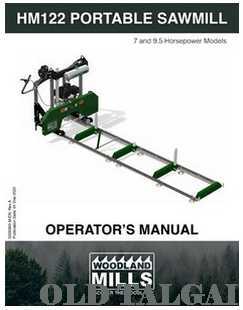

Manuals & Technical Drawings
Please click links below:
