Portable Timber Mill HM130MAX – 30″
$7,799.00
If you’re a sawyer in search of a portable bandsaw timber mill with a wide capacity for milling popular live edge slabs or big lumber, consider the Portable Sawmill HM130MAX. This timber mill boasts a log capacity of 30” (76cm) in diameter and can mill 30” (76cm) width. It is ideal for producing stunning high-value live edge boards. Additionally, the Portable Sawmill HM130MAX comes equipped with a variety of new features, including the RapidChange™ blade system, auto lube, an operation hour meter, and wider cut capability among others.
These enhancements make it a perfect choice for any woodworker looking to elevate their timber milling experience.
TECHNICAL SPECIFICATIONS
| Engine | 14hp Manual/Electric Start Kohler |
| Blade Engagement System | Centrifugal Clutch (Gas & Go) |
| Log Diameter | 30″ [76 cm] |
| Max Board Width | 29″ [73 cm] |
| Max Live Edge Width | 30″ [76 cm] |
| Max Board Thickness | 7″ [18 cm] |
| Cast Iron Bandwheel Diameter | 19″ [48 cm] |
| Standard Cutting Length | 10′ 5″ [3.1 m] |
| Track Width | 37″ [94 cm] |
| Track Extension Length | 6′ 5″ [1.95 m] |
| Levelling Feet | 12 |
| Galvanized Track Rails | Yes |
| Track Bunks | 3 x 6″ [75 x 150 mm] |
| Log Clamps | 2x Quick Lock |
| 4 Post Head Design | Yes |
| Adjustable Blade Guide | Yes |
| Blade Size | 158 x 1.25″ [4013 x 32 mm] |
| RapidChange Blade System | Yes |
| Auto Lubrication | Yes |
| Lubricant Tank Size | 13L [3.4gal] Aluminum |
| Hour Meter | Yes |
| Finish | Powder Coat Paint / Galvanized Steel |
| Sawmill Warranty | 2-Year |
| Engine Warranty | 3-Year |
| Shipping Weight | 1000 lbs (454 kg) |

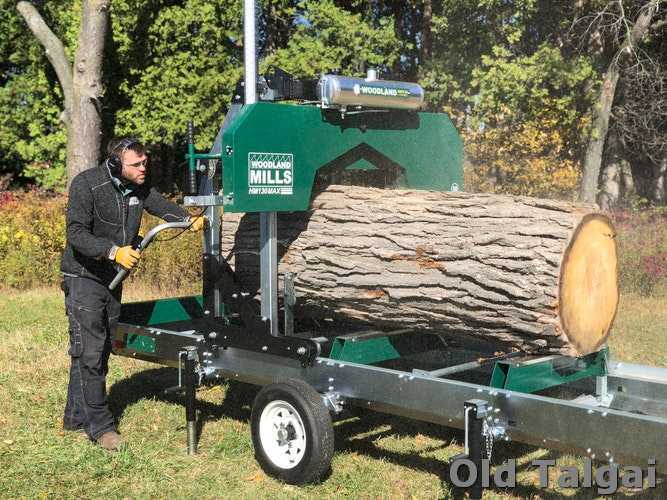

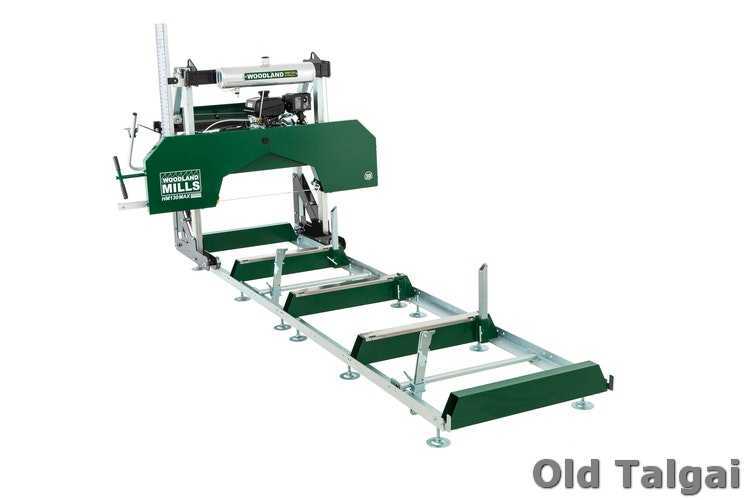

HM130MAX PORTABLE SAWMILL
Enhance your woodworking capabilities with the HM130MAX portable sawmill. Designed for sawyers creating wide live edge slabs or large lumber in Australian hardwood forests, this timber mill boasts a 30″ (76cm) log capacity and a 14HP Kohler engine. It provides impressive cutting power and comes with automatic blade lubrication and the RapidChange™ blade system.
Its robust build ensures reliability and durability during extensive use.

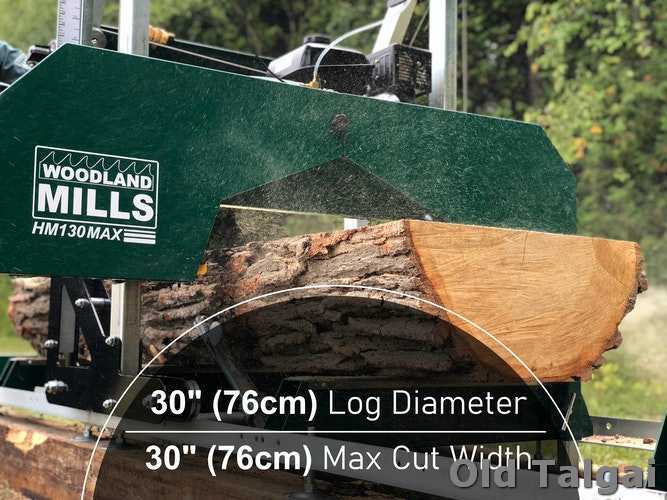

WIDE PRECISION CUTTING
The throat is widened for 30″ logs, allowing seamless slicing without squaring the cant. Logs up to 10′ 5″ (3.1m) can be cut; optional track extensions allow unlimited lengths. Cut accuracy allows veneers as thin as 1/16″ (2mm) and cuts within 1″ (25mm) of the deck.

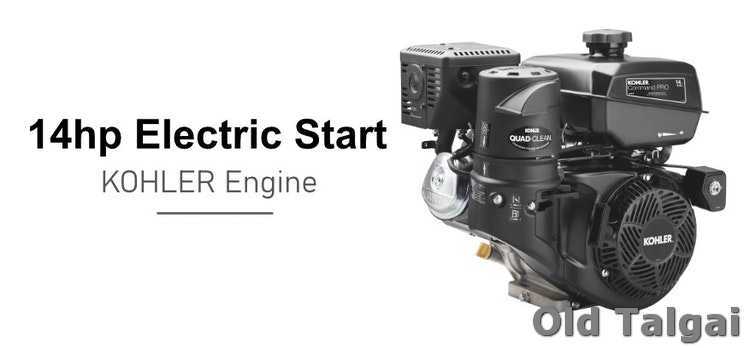

EFFICIENT POWER FOR BIGGER LOGS
Powered by a 14HP 4-cycle Kohler engine (manual/electric start), with Quad-Clean 4-stage air filtration. Optional 3-phase electric motor. Easy gas-and-go operation with centrifugal clutch.

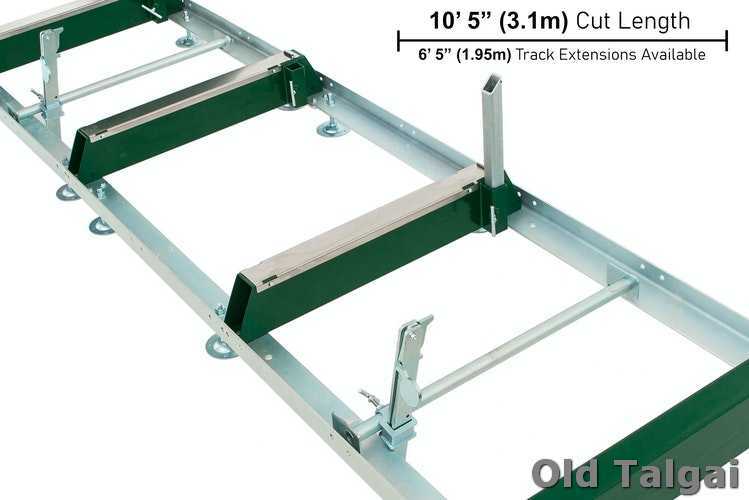

RIGID TRACK SYSTEM
Sawmill head glides on a rigid L-channel, supported by heavy-duty rectangle channels with cross supports to prevent marking. Adjustable quick-lock log clamps and optional extensions for any log length.

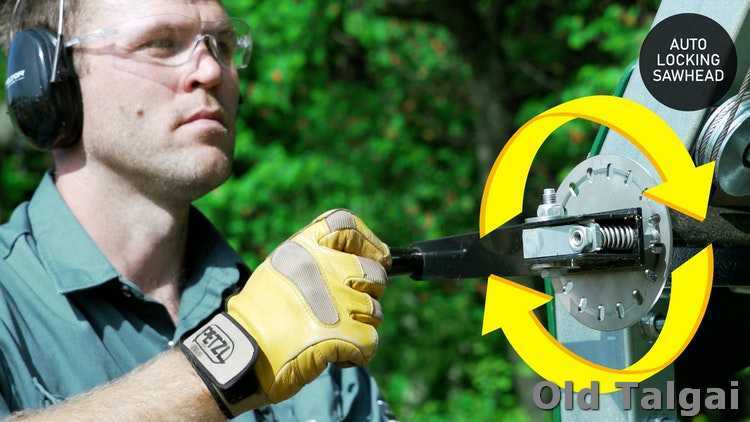

AUTO LOCKING SAWHEAD
16 locking locations, acme lead screw adjustments within 1/64″, optional power drive. Magnetic log scale rulers included.

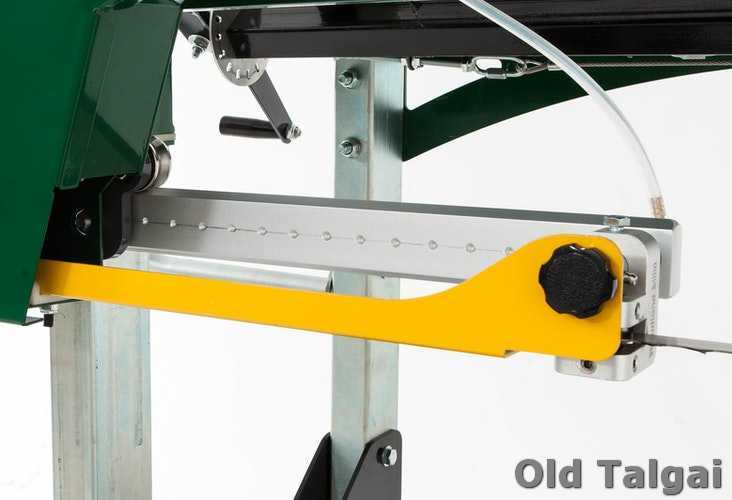

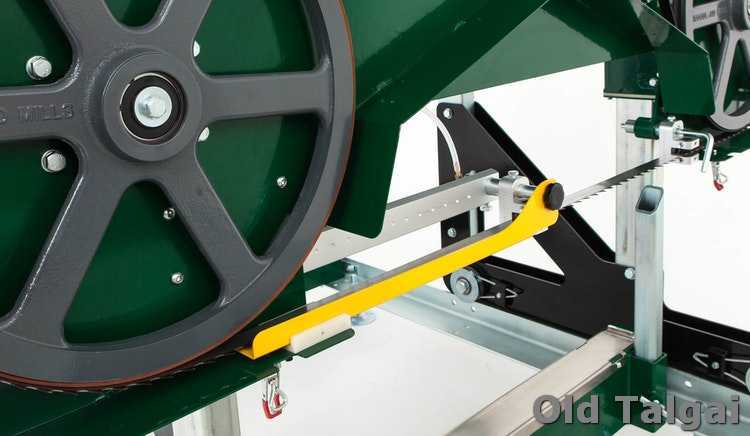

AUTO LOCKING ADJUSTABLE BLADE GUIDE
Stainless steel v-rollers and machined aluminium arm reduce blade wander and ensure precise cuts.

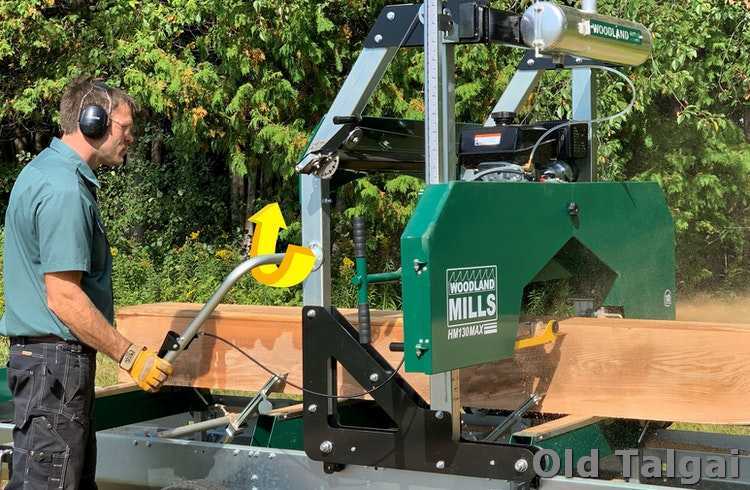

GAS & GO OPERATION
Throttle handle engages engine RPM, saw blade, and auto-lube system simultaneously. Adjustable handle position for operator comfort.

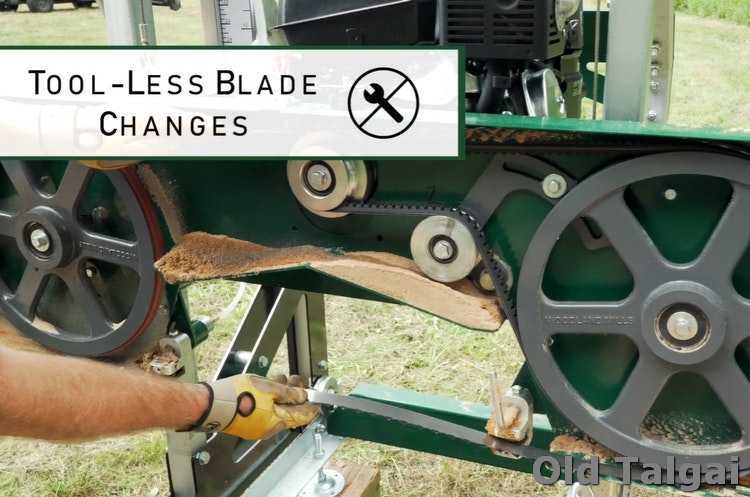

RAPIDCHANGE™ BLADE SYSTEM
Tool-less blade changes, Belleville washers maintain consistent blade tension and reduce stress on blades.
THIN KERF BLADES
Standard 1.25″ x 158″ x .042″ Woodmaster hardened tipped blades, kerf just .080″ (2mm) for maximum lumber yield.
GO MOBILE
Woodlander trailers with robust chassis, torsion axle, LED lights, leveling jacks, optional log ramp, and head locking kit. Trailer sold as off-road in AU/NZ; registration responsibility of buyer.
OLD TALGAI QUALITY & CUSTOMER SERVICE
Contact: 61 (0)439 643 384. 2-Year sawmill warranty (excludes wearing parts), 3-Year Kohler engine warranty honored through any Kohler dealer. Warranty Policy

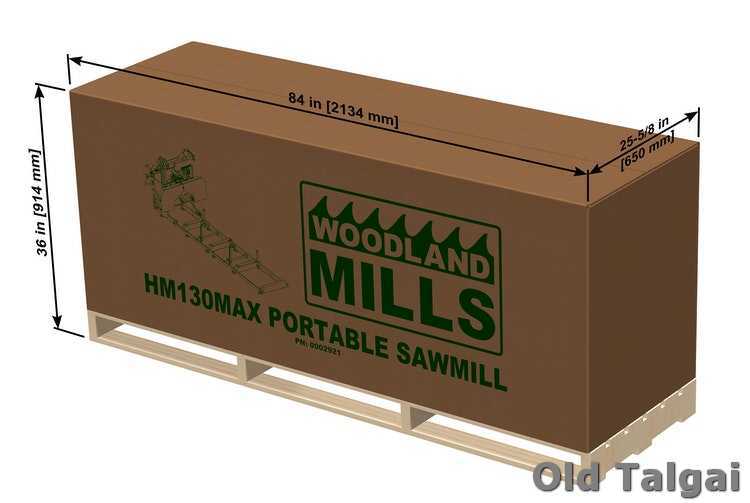

SHIPPING
Shipping Weight: 1000 lbs (454 kg)

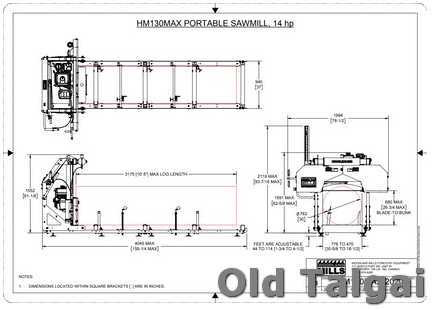

MANUALS & TECHNICAL DRAWINGS
For more information, contact us.
| Weight | 478 kg |
|---|---|
| Dimensions | 213 × 65 × 91 cm |
| Freight Options | Specific Adress (Subject to a Quote), International (Subject to a Quote), NSW – Yennora Warehouse Collect, ACT – Canberra Depot Collect (+AU$260.91), NSW – Albury Depot Collect (+AU$294.55), NSW – New Castle Depot Collect (+AU$276.36), NSW – Dubbo Depot Collect (+AU$330.00), NSW – Orange Depot Collect (+AU$299.09), NSW – Tamworth Depot Collect (+AU$362.73), NSW – Wollongon Depot Collect (+AU$231.82), QLD – Gold Coast Depot Collect (+AU$341.82), QLD – Mackay Depot Collect (+AU$591.82), QLD – North Brisbane Depot Collect (+AU$335.45), QLD – South Brisbane Depot Collect (+AU$335.45), QLD – Toowoomba Depot Collect (+AU$373.64), QLD – Townsville Depot Collect (+AU$546.36), SA – Adelaide Park Depot Collect (+AU$323.64), TAS – Bridgewater Depot Collect (+AU$630.00), TAS – Latrobe Depot Collect (+AU$630.00), TAS – Western Junction Depot Collect (+AU$630.00), VIC – Ballarat Depot Collect (+AU$301.82), VIC – Bendigo Depot Collect (+AU$330.00), VIC – Melbourne East Depot Collect (+AU$292.73), VIC – Melborune North Depot Collect (+AU$292.73), VIC – Geelong Depot Collect (+AU$328.18), VIC – Traralgon Depot Collect (+AU$383.64), WA – Bunbury Depot Collect (+AU$597.27), WA – Perth Depot Collect (+AU$557.27) |
