PTO Wood Chipper WC46 – 4″
$4,199.00
The WC46 PTO Wood Chipper from Woodland Mills efficiently handles hardwood from your forest in Australia. It is ideal for sub-compact tractors with 15 to 30hp at the PTO. The chipper features an automatic hydraulic infeed system, direct drive, and a 4″ x 6″ (10 cm x 15 cm) opening. Additionally, it has a 360-degree swivel discharge chute. These features make the chipper the perfect choice for efficiently chipping wood on your property.
TECHNICAL SPECIFICATIONS
| Drive System: | Tractor PTO |
| Transport: | Tractor 3 Point Hitch |
| Minimum HP Required (at the PTO): | 15 |
| Maximum HP (at the PTO): | 30 |
| Hydraulic System: | Self Contained |
| Hydraulic Oil: | 17 L / 4.5 gallons of ISO 46 or ISO 68 (warmer climates) |
| Hydraulic Pump: | Belt Driven |
| Flywheel Diameter/Thickness: | 18″ x 3/4″ thick (46cm x 2.0 cm thick) |
| Flywheel Speed: | 540 RPM |
| Flywheel Drive System: | Direct Drive |
| Flywheel Housing Design: | Easy To Open Clamshell (for easy clean out and blade changes) |
| Flywheel Housing Thickness: | 5/16″ (8mm) Thick |
| Flywheel Shaft: | 2″ (50mm) Diameter |
| Number of Blades: | 4 Reversible Blades |
| PTO Shaft: | Shear Pin Protected PTO Shaft Included |
| In-feed System: | Self Contained Hydraulic System |
| In-feed Drive: | Forward/Neutral/Reverse With Variable Speed (0-75 ft-min) / (23 m/min) |
| In-feed Roller Size: | 5.25″ (13cm) Chisel Tooth |
| In-feed Opening | 4″ tall x 6″ wide (10cm x 15cm) |
| In-feed Roller Pressure: | Adjustable via Spring Tension |
| Quick Hitch Compatible: | Yes |
| Chipper Base: | Laser Cut Plate Design |
| Finish: | Powder Coat Paint |
| Warranty: | 3 Year |
| Product Weight: | 550 lb [250 kg] |
| Shipping Weight: | 648 lbs (294 kg) |

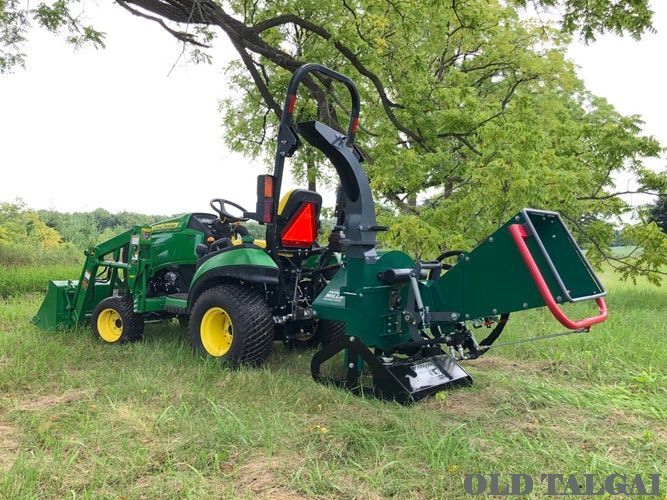

WC46 4″ PTO Wood Chipper
Woodland Mills designed the WC46 PTO-driven wood chipper to cater to the needs of sub-compact tractors with 15-30hp at the PTO. With its auto hydraulic infeed system, direct drive, and a 4″ x 6″ (10 cm x 15 cm) opening, it can handle timber with a diameter of up to 4″ (10cm), depending on tractor hp.
Specifically designed for users who need a reliable and powerful chipping solution. This wood chipper is perfect for handling larger branches and debris with ease.
Capacity
The WC46 PTO driven wood chipper is designed to work with sub-compact tractors having 15-30hp at the PTO. It comes with a 19” x 18.5” (48cm x 47cm) large infeed hopper opening that tapers down to a 4” x 6” (10 cm x 15 cm) opening. The infeed roller, hydraulically driven and 5.25” (13cm) in diameter, grabs the branches and feeds them through the chipper. The WC46 is capable of chipping branches as small as ¼” (6mm) diameter and as large as 4” (10 cm) diameter. To process full 4” (10cm) diameter logs, tractors with over 20 HP at the PTO are required. The WC46 is suitable for customers with sub-compact tractors having a rear PTO that rotates at 540rpm, the ability to lift 550lbs (250kgs) at the 3 point hitch system.

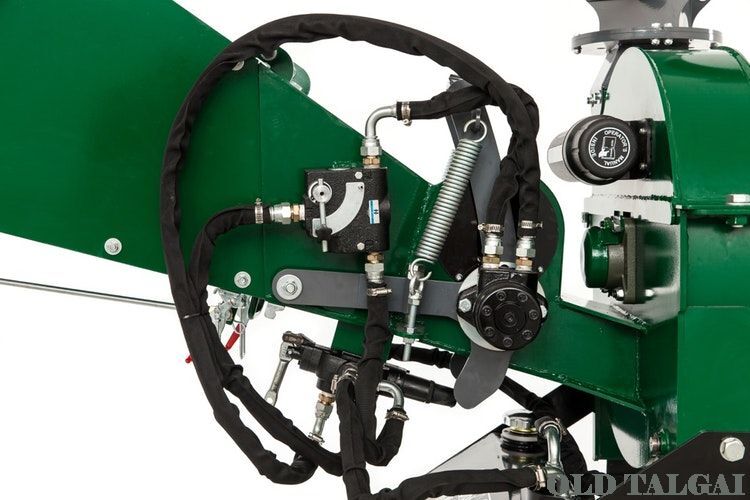

Hydraulic Infeed System

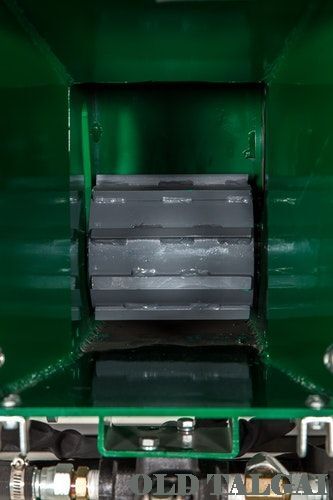

The WC46’s hydraulically driven 5.25” (13cm) diameter infeed roller easily pulls branches, limbs, and hardwood from your forest into the chipper. Its adjustable direction and speed make it easy to handle branches of all shapes and sizes.

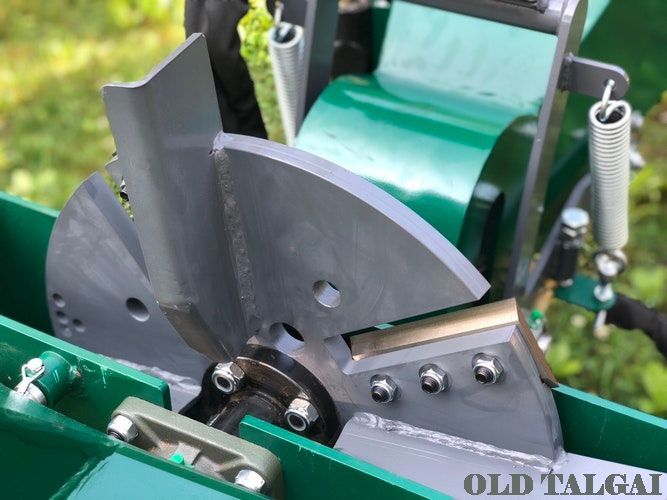

Flywheel
The 18-inch (46cm) diameter flywheel is dynamically balanced and made of solid steel, with a thickness of 3/4 inch (2cm). It runs on a 2-inch (5cm) diameter shaft and is supported by two industrial-grade flanged bearings that can be greased.

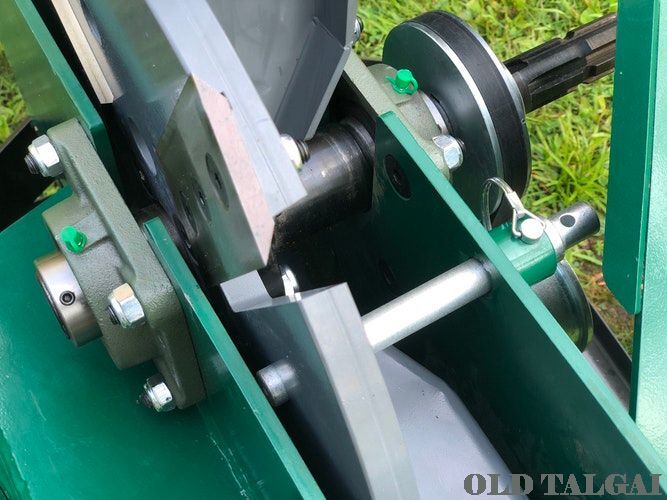

Flywheel Locking Pin
The wood chipper is equipped with a flywheel locking pin, which enables convenient and secure blade changes or maintenance of the flywheel.

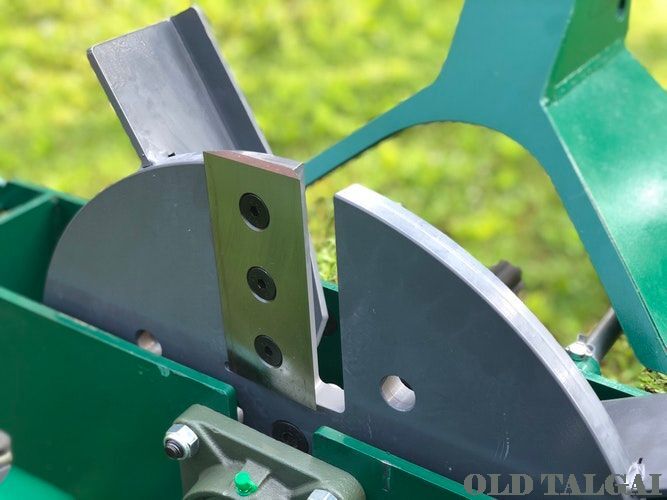

Chipper Blades
The wood chipper has four reversible chipper blades made of hardened steel. These blades are spaced 90 degrees apart and can be flipped to utilize both cutting edges.
With this you can achieve a clean yard and manage your wood waste effectively. This wood chipper enhances the efficiency of your property management tasks.
Folding Infeed Chute
The infeed chute has a large 19” x 18.5” (48cm x 47cm) opening for feeding branches. When not in use, the chute can be folded up to reduce the chipper’s storage or transportation space.

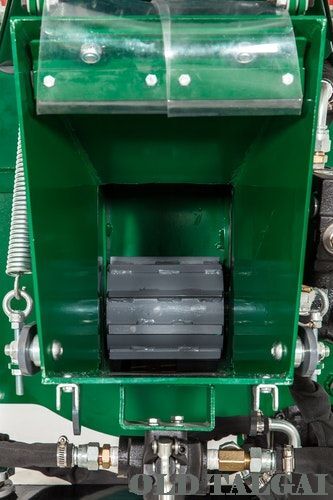

Infeed Opening
The chipper’s flywheel housing features a 4″ x 6″ (10cm x 15cm) square opening that can accommodate branches with multiple limbs.
The design is focused on convenience and efficiency, making it a top choice for homeowners looking to maintain their landscapes.

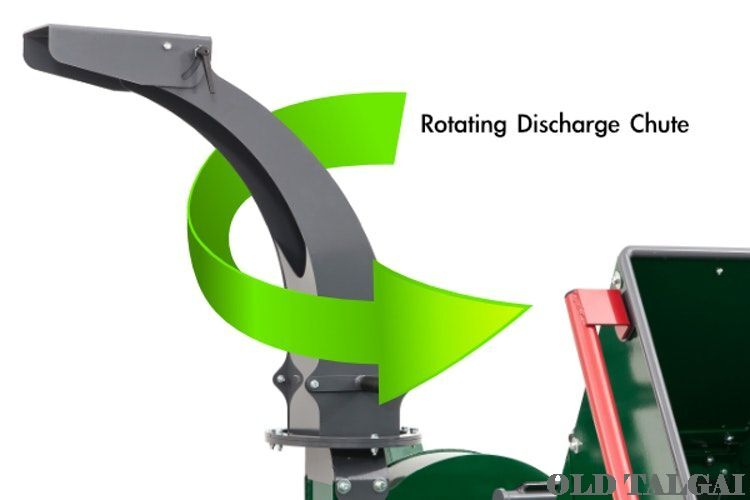

Discharge Chute
The discharge chute on the WC46 wood chipper can be easily rotated 360 degrees, allowing for directing wood chips in any desired direction.
Choosing the right equipment like the can greatly improve your gardening and landscaping workflow.
OLD TALGAI QUALITY & CUSTOMER SERVICE
PTO Shaft
Included with the WC46 chipper is a PTO shaft complete with a shear pin.
Assembly
The chipper will arrive in a steel crate and can be up and running in as little as one hour.
Weight
The WC46 was designed for property owners, but built like a commercial wood chipper. It weighs in at 550 lbs (250kgs).

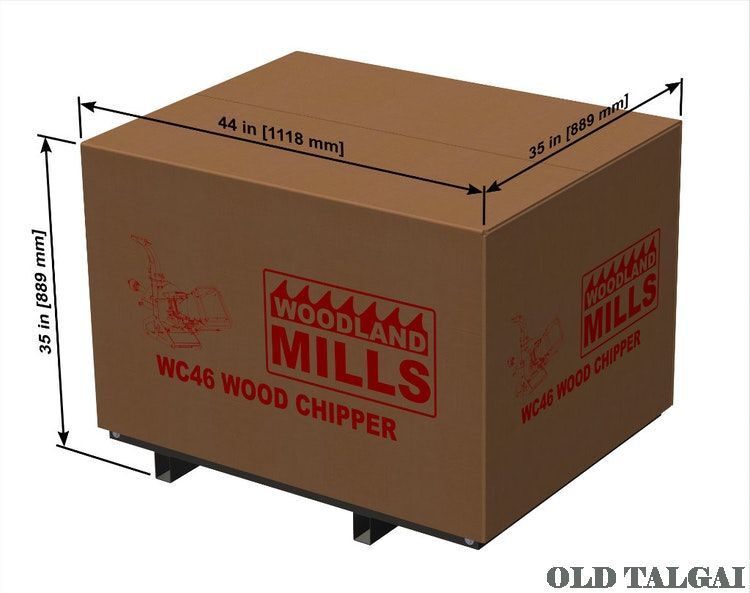

SHIPPING
Shipping Weight: 648 lbs (294 kg)

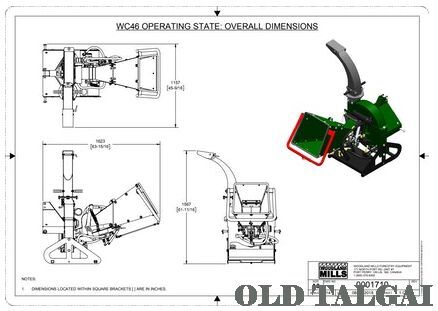

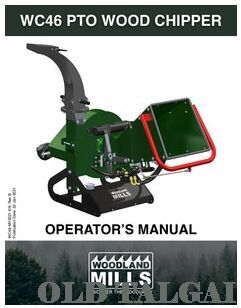

Manuals & Technical Drawings
Please click on links below:
